P500 7.5kW Rated 8.5kW Peak Wide Voltage Electric Outboard Motor | 20-72V Boat Propulsion

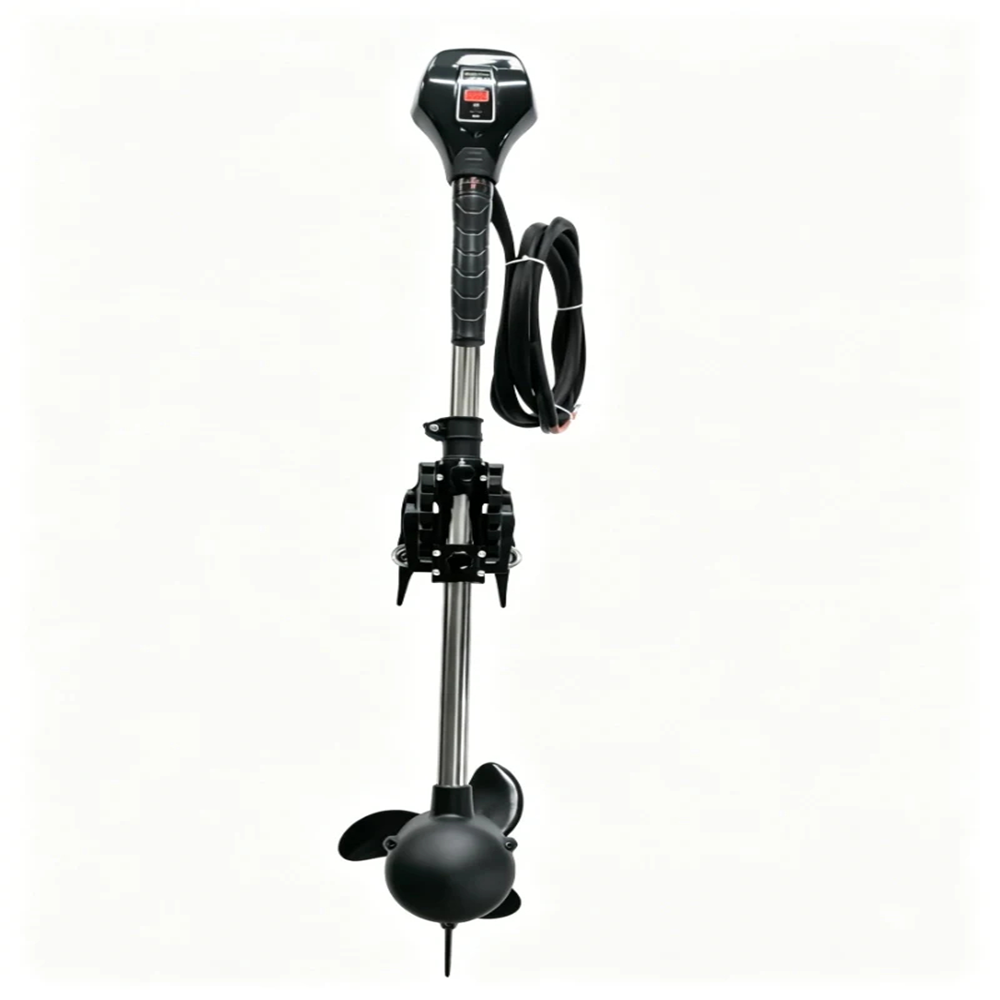

P500 7.5kW 8.5kW Wide Voltage Electric Outboard Boat Motor

This P500 7.5kW 8.5kW wide voltage electric outboard motor delivers reliable high-power marine propulsion with 7.5kW continuous rated power and up to 8.5kW peak output. Designed with universal 20–72V wide voltage compatibility, this CVT speed-controlled outboard works seamlessly across 24V, 48V and 72V battery systems for both saltwater and freshwater boats, ideal for 3–5m fishing vessels, inflatable boats and small leisure craft with a top speed range of 10–30km/h.

Core Key Features

• High Power Output: 7.5kW constant rated power, maximum 8.5kW peak thrust for fast, stable boat acceleration
• 20–72V Wide Voltage Design: Compatible with 24V, 48V, 72V marine battery packs, no need to swap motors for different power systems
• CVT Variable Speed Control: Smooth stepless speed regulation for precise slow trolling and fast cruising
• Dual Water Environment Ready: Corrosion-resistant construction suitable for coastal saltwater, lakes, rivers and offshore short trips
• Wide Vessel Fit: Perfectly matched for all 3–5m small to medium fishing boats, dinghies and leisure watercraft
• Stable RPM Performance: 1500RPM at 24V, 3000RPM at 48V for balanced torque and speed output

Full Technical Specifications

• Model Number: P500
• Rated Continuous Power: 7.5kW
• Maximum Peak Power: 8.5kW
• Operating Voltage Range: 20V–72V DC (24V / 48V / 72V compatible)
• 24V Spec: 90A Max Current, 1500 RPM
• 48V Spec: 155A Max Current, 3000 RPM
• 72V Spec: 120A Max Current
• Speed Control Type: CVT Continuously Variable Transmission
• Suitable Boat Length: 3m – 5m
• Boat Speed Range: 10km/h – 30km/h
• Water Compatibility: Saltwater, Freshwater
• Application: Fishing boats, inflatable dinghies, small leisure vessels

Applicable Usage Scenarios

• Inshore saltwater fishing boats & coastal short cruising
• Freshwater lake and river angling & trolling trips
• 3–5m inflatable dinghies and lightweight fishing craft
• Small work boats, aquaculture patrol vessels
• Recreational sightseeing and slow-speed water touring

Frequently Asked Questions

• Q: What battery voltages can this P500 motor run on?A: It features wide 20–72V universal voltage support, compatible with standard 24V, 48V and 72V marine lithium or lead-acid battery packs.
• Q: What size boat does this outboard motor fit?A: Optimized for all boats between 3 and 5 meters long, delivering a cruising speed of 10 to 30 kilometers per hour depending on load and hull design.
• Q: Can this motor be used in saltwater environments?A: Yes, the motor housing and propeller assembly use anti-corrosion materials built for both salt and fresh water; rinse with fresh water after saltwater use to extend lifespan.
• Q: What power levels does this P500 unit provide?A: It runs at a steady 7.5kW continuous power for daily use and can hit a peak maximum output of 8.5kW for extra thrust during acceleration.
